Transmission Mount - Racing version

To meet the demanding needs of racers, the new TM-R features a hybrid design sharing features of our standard TME bushings and solid metal racing mounts:

• High-durometer urethane bushings are stiff enough to provide nearly flex-free support, yet still absorb some amount of vibration.

• Continuous bolt-through design eliminates flex and bushing separation from rotational forces (especially with high-powered cars).

• Reduces torque and power loss from rubber mounting flex.

• Direct-fit design with correct clearance notch ensures hassle-free installation on any 1992-2005 3-series or M3.

• Stainless steel hardware.

• UUC transmission mount enforcers are not required.

How is this different from the standard UUC Transmission Mount?

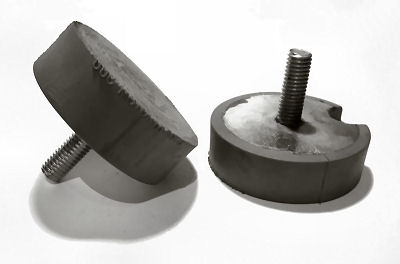

standard street-style bushing is two separate bolts within material.

The standard BMW bushings and the standard UUC bushings do not have a continuous bolt.  Despite appearances, those bushings actually have two separate threaded rods within the bushing material.  While this is an ideal design for a street car, a race car has different requirements.  Noise and vibration isolation are not race car priorities and are happily swapped in favor of a stiffer and stronger design.

The TM-R meets these requirements with a stiff urethane and strong single bolt that will not allow the bushing to pull apart or break, regardless of how much powertrain torque is applied.

For details and comparisons of all three UUC transmission mount versions, please click here.
